供应塑料打包带机组（包装带机）
 放大图片
|
所在地： 浙江 平阳县
供货总量：999台
| 联系方式 |

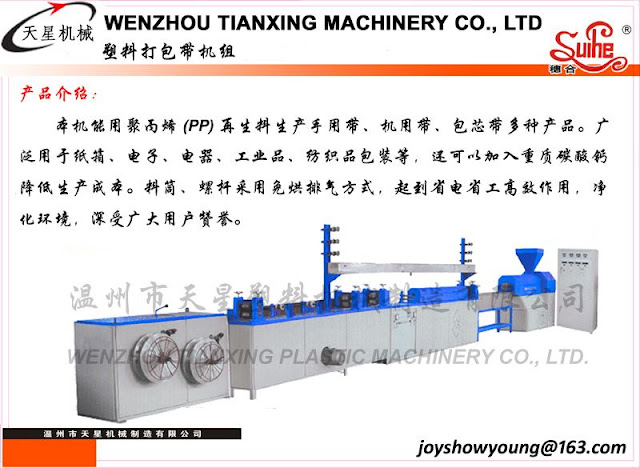

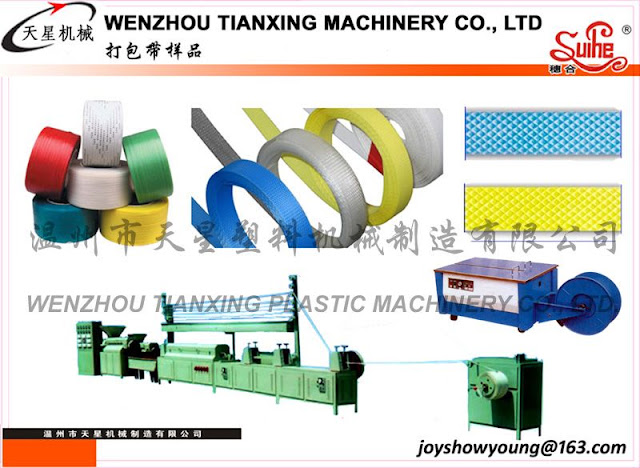

塑料打包带机组（包装带机） Plastic Wrapping Tape Machine 编号（№）:85 产品 用途： 本机能用聚丙烯(PP)再生料生产手用带、机用带、包芯带多种产品。广泛用于纸箱、电子、电器、工业品、纺织品包装等，还可以加入重质碳酸钙降低生产成本。料筒、螺杆采用免烘排气方式，起到省电省工高效作用，净化环境，深受广大用户赞誉。 产品特点： 1、采用自动温控仪控制加热温度，灵敏度高。 2、机械传动采用无级调速电机驱动，调速范围大。 3、结构紧凑，操作维修方便，价格低廉。 4、主要设备由电器控制柜-挤出机-水箱-前牵引-加热床-水箱-拉伸卷取成型等部分组成。 Introduce: Use： This machine can produce a variety of productions, as manual tape, machine tape and solid tape, etc. with 100% polypropylene (PP) reclaimed materials. It is widely used in carton and package of electronic, electric, industrial, and textile products. It can also add large calcium carbonate in to reduce manufacturing cost. Bake-free exhaust mode is used in cylinder and screw to save power and labor, improve efficiency, and purify environment, which has win recognition of customers. 2. Function: 1、The automatic temperature control instrument controlling temperature, and high sensitivity. 2、Two mechanical transmission using variable speed motor, with large range of speed-adjustment. 3、Compact structure, easy operation and maintenance, and low price. 4、Main equipments: Electrical control cabinet , extrusion, water tanks, front-driving, heating mattresses, water tanks, coiling shape tensile and other equipment. 主要技术参数： 型 号 85型 主机加热功率(kw) 10 挤出机主螺杆直径(mm) 85 滚花直径 (mm) 90 螺杆长径比 20:1主 牵引电机功率(kw) 2.2 螺杆转速(r/min) 20-80/20-60 烘箱加热功率(kw) 6 生产能力(kg/h) 35-55 力矩收卷电机功率(kw) 0.75 挤出机主电机功率(kw) 5.5 设备重量(kg) 1800 机用带规格 手动宽度 16?0.5mm 厚度 0.9?0.1mm 机动宽度 13.5?0.5mm 厚度 0.7?0.1mm 机用包芯带（夹芯）规格 手动宽度 16?0.5mm 厚度 1?0.1mm 机动宽度 13.5?0.5mm 厚度 0.7?0.1mm

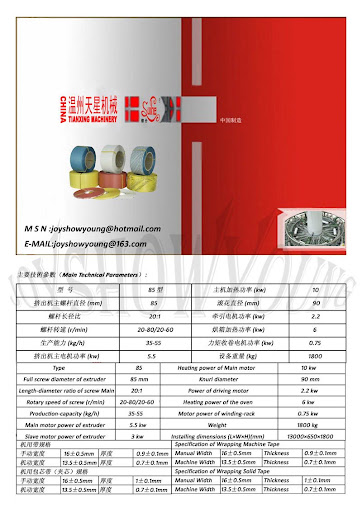

Main Technical Parameters：
| Type | 85 | Heating power of Main motor | 10 kw | |||
| Full screw diameter of extruder | 85 mm | Knurl diameter | 90 mm | |||
| Length-diameter ratio of screw | Main 20:1 | Power of driving motor | 2.2 kw | |||
| Rotary speed of screw (r/min) | 20-80/20-60 | Heating power of the oven | 6 kw | |||
| Production-capacity (kg/h) | 35-55 | Motor power of winding-rack | 0.75 kw | |||
| Main motor power of extruder | 5.5 kw | Weight | 1800 kg | |||
| Slave motor power of extruder | 3 kw | Installing dimensions (L譝譎)(mm) | 13000?650?1800 | |||
Specification of Wrapping Machine Tape |
| ||||||
Manual Width | 16?0.5mm | Thickness | 0.9?0.1mm |
| |||
Machine Width | 13.5?0.5mm | Thickness | 0.7?0.1mm |
| |||
Specification of Wrapping Solid Tape |
| ||||||
Manual Width | 16?0.5mm | Thickness | 1?0.1mm |
| |||
Machine Width | 13.5?0.5mm | Thickness | 0.7?0.1mm |
| |||
注：以上产品外形或技术参数如有变化，恕不另行通知。Note:All technical parameter are subject to change without notice.
